Since 2004, DSW has specialised in designing and manufacturing aluminium alloy bobbins, forged bobbins, aluminium spools, and forged aluminium beams for the textile industry.
We offer both cast and forged aluminium bobbins at competitive prices.
For projects where cost efficiency is a priority, cast aluminium bobbins provide an excellent solution without compromising quality.

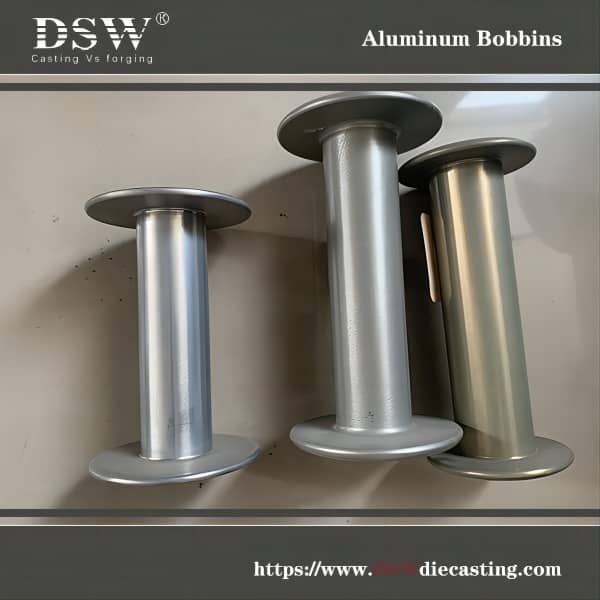

Aluminium Alloy Bobbins for Twister Machines
Our aluminium bobbins are precision-engineered for high-speed operation and long spindle life.
Each bobbin is dynamically balanced and can be customised with surface treatments to suit specific requirements.
Key Features
- High-Grade Light Alloy: Adopts a high-grade light alloy with a featured structure, ensuring high strength.
- Precise Processing: Precisely processed and dynamically balanced for optimal performance.
- High-Speed Operation: Suitable for running at speeds up to 14,000 rpm with minimal noise and vibration.
- Energy Efficiency: Combined with a smooth phenolic flange, it helps reduce power consumption by up to 20%.
- Polished Flanges: Flange polished to minimize filament opening or breakage.
- Custom Surface Treatment: Special surface treatments are available upon customer request.
- Steaming Compatibility: Bobbins designed for steaming applications are available.
- Yarn Waste Removal: Includes a groove specifically for yarn waste removal.
Aluminium Bobbin Sizes
| Model No. | Traverse Length (L) | Traverse Length (L2) | Flange Dia. (D2) | Barrel Dia. (D3) |
|---|---|---|---|---|
| P-01 | 150 | 90 | 90 | 35.5 |
| P-02 | 150 | 84 | 84 | 35.5 |
| P-03 | 140 | 103 | 103 | 53.5 |
| P-04 | 140 | 90 | 90 | 40 |
| P-05 | 135 | 76 | 76 | 35.5 |

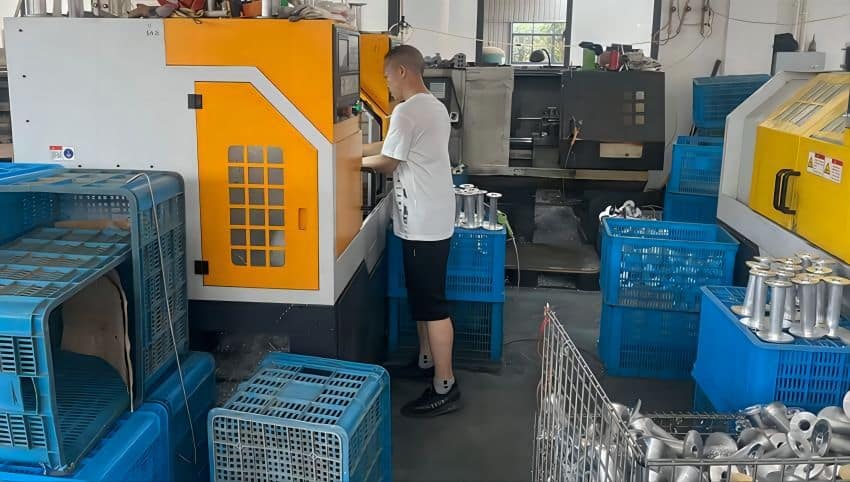

This series is produced using high-pressure die casting, precision turning, and dynamic balancing at high speeds, significantly extending spindle lifespan.
Applications
- Industrial sewing thread
- Fishnet twine
- Tyrecord
- HDPE and PP rope
- Glass fibre
Compatible Machinery
- Doubling and Twisting Machines: Lezzeni Mario, Allma, Galan

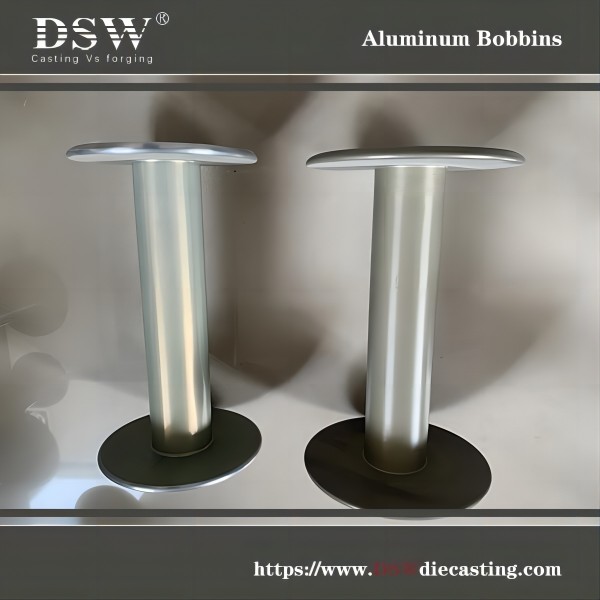

- Single or Double Covering Machines: Menegatto, SSM
- TFO Twisting Machines: RPR, ICBT, RATTI
We provide innovative solutions tailored to the needs of our customers in the textile industry. If you need forged bobbins, feel free to contact me.
