Aluminium Shielding & RF Shielded Enclosures (Die Casting)

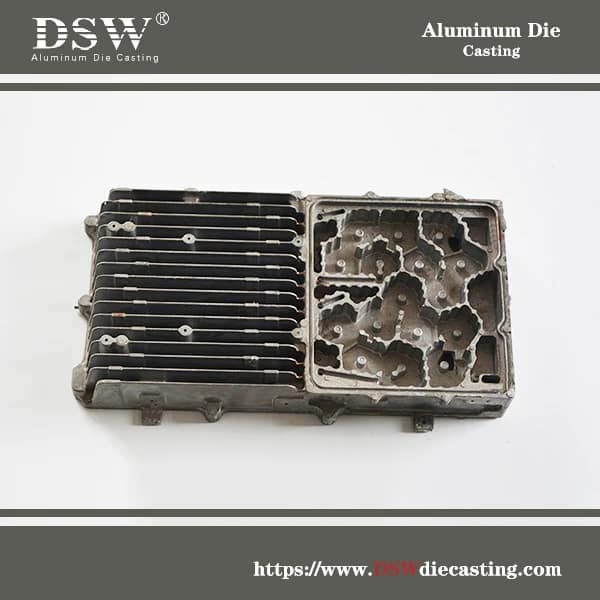

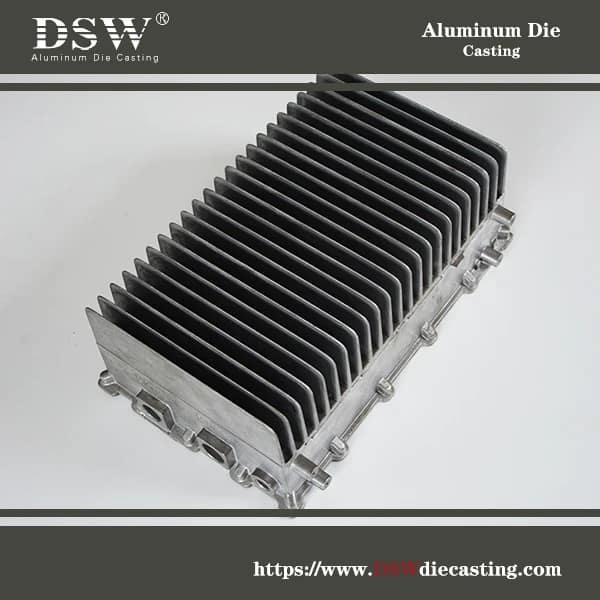

DSW specialises in manufacturing high-precision aluminium shielding and RF shielded enclosures using advanced die casting technology.
Our aluminium shielding RF shielded enclosure is engineered to provide superior electromagnetic containment, structural protection, and thermal stability for high-frequency communication filters and RF assemblies.
This precision RF enclosure is designed for applications where shielding effectiveness, grounding continuity, and environmental durability directly influence signal integrity.
Manufacturing Technology
All enclosures are produced using high-pressure aluminium die casting, ensuring:
- Uniform wall thickness and structural rigidity
- Excellent repeatability for mass production
- Integrated mounting bosses and internal features
- Cost-efficient large-volume manufacturing
Material Specification
- Material: ADC-12 (AlSi12) aluminum alloy
- High electrical conductivity for aluminium shielding
- Good thermal conductivity for passive heat dissipation
- Strong corrosion resistance after surface treatment
Shielding Performance
- Die-cast aluminium structure provides natural RF attenuation
- Precision mating surfaces reduce seam leakage
- Optional conductive silicone EMI gasket
- Shielding effectiveness up to 80–100 dB (frequency and design dependent)
Optimized for UHF, VHF, sub-6 GHz, and microwave filter assemblies.
Mechanical Specifications
| Manufacturing Process | High-Pressure Aluminium Die Casting |
| Material Grade | ADC-12 (AlSi12) |
| Wall Thickness | 2.5–3.0 mm (typical for RF stability) |
| Surface Finish | Powder Coated / Chromate Conversion / Painted |
| IP Rating | Up to IP65 with gasket sealing |
| Operating Temperature | -40°C to +120°C |
| Fasteners | Stainless Steel Screws |
Applications
- Die-cast RF filter enclosure for 5G small cell communication systems
- Aluminium EMI shielded enclosure for telecom base station RF modules
- Cavity and bandpass filter housings in die-cast aluminium
- Microwave filter die-cast housing for high-frequency communication devices
- Industrial RF electronics enclosure for control and signal conditioning systems
Production Capabilities
- Custom die-cast mould development
- High-volume die casting production
- Surface finishing and coating
- Assembly support (gasket and hardware installation)
- OEM and ODM service
