Die casting is a crucial process in modern manufacturing, and the design of die casting dies plays a vital role in ensuring the quality and efficiency of the final product. This comprehensive guide explores the key factors influencing die casting die design and casting mould design, offering insights into various aspects critical for achieving optimal results.
Factors in Die Casting Die Design:
- Chosen Types of Aluminum Die Casting:
High Pressure Die Casting (HPDC): This method involves injecting molten aluminum into a die under high pressure. HPDC is known for its ability to produce intricate shapes with excellent surface finish and dimensional accuracy. It is ideal for high-volume production due to its efficiency and speed.
Gravity Die Casting (GDC): In this method, molten aluminum is poured into the die using gravity. GDC is favored for producing parts with fewer porosity issues and allows for heat treatment. However, it is generally less efficient than HPDC in terms of production speed.
Low Pressure Die Casting (LPDC): LPDC involves pushing molten aluminum into the die cavity under low pressure, typically around 5-15 psi. This method is well-suited for producing high-integrity, complex parts with improved mechanical properties. LPDC minimizes porosity and enhances dimensional accuracy and surface finish. It is ideal for larger castings and offers versatility with various aluminum alloys.
General Wall Thickness Considerations: When design casting mould dies, wall thickness is a critical factor. Uniform wall thickness ensures even cooling and reduces the risk of defects such as warping and shrinkage. Design considerations must account for material flow and cooling rates to achieve optimal results.
Aluminum Die Casting Tonnage Calculation:
Clamping Force Determination: The clamping force is essential to keep the die closed during the injection process. It prevents flash defects and ensures the quality of the casting.
Calculation Formula Explained: The clamping force can be calculated using the formula: Clamping Force(T)=Projected Area(A)×Injection Pressure(P)\text{Clamping Force} (T) = \text{Projected Area} (A) \times \text{Injection Pressure} (P)Clamping Force(T)=Projected Area(A)×Injection Pressure(P) where AAA is the projected area of the casting and PPP is the injection pressure.
Aluminum Die Casting Shrinkage:
Impact of Shrinkage on Metal Materials: Shrinkage occurs as the molten metal cools and solidifies, causing a reduction in volume. This can lead to defects such as internal voids and surface sink marks.
Factors Affecting Shrinkage: Key factors include product structure, wall thickness, part size, and cooling rate. Proper analysis and design adjustments are necessary to mitigate shrinkage effects.

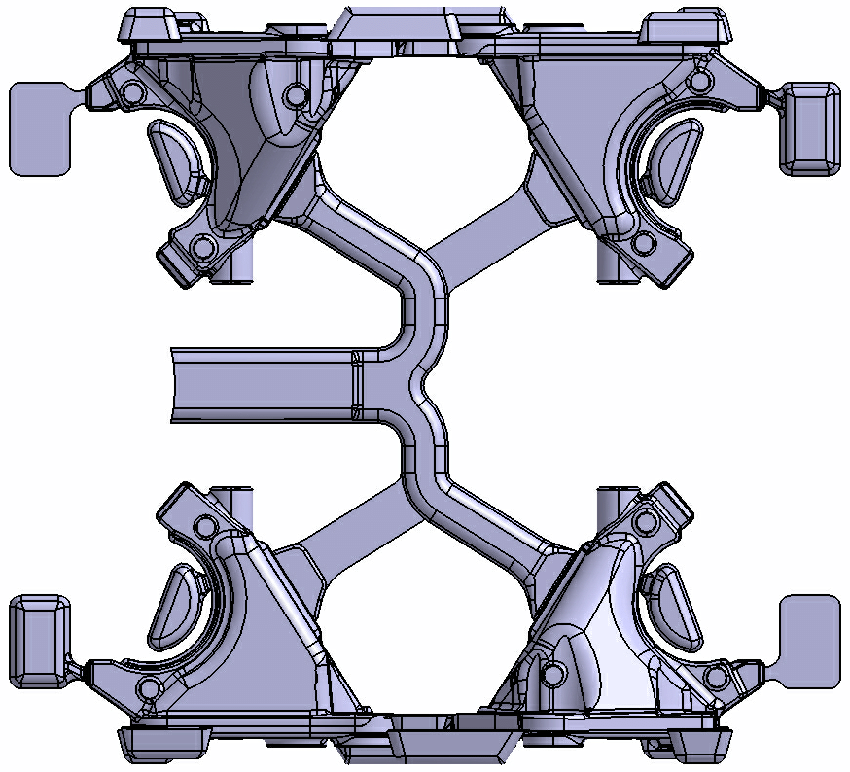

Die Casting Gate Area Calculation: The gate area is crucial for controlling the flow of molten metal into the die cavity. Proper calculation of the gate size ensures efficient mold filling and minimizes defects. Factors to consider include the flow rate, part geometry, and cooling requirements.
Design Tips for Die Casting
Designing die-cast components involves several critical variables that influence part quality, strength, and cost-efficiency. Below are enhanced tips covering casting die design, die casting mold design, and die casting tool design to guide the process.
1. Fillets, Radii, and Draft Angles
Incorporating appropriate fillets and radii helps prevent stress concentrations and improves the structural integrity of the part. Avoid sharp corners, use larger radii in high-stress areas, and maintain consistency in fillet sizes. Proper draft angles (typically 1-3 degrees) allow for easy ejection from the mold without damaging the part.
Improper fillets and radii can weaken components by altering their cross-sectional area. To ensure optimal strength, consider these design tips:
- Avoid sharp corners to prevent stress concentrations.
- Use larger radii in high-stress areas for added strength.
- Ensure appropriate radii at surface junctions to enhance joint strength.
- Maintain consistent fillets and radii throughout to preserve both strength and smoothness.
- Apply draft angles (typically 1-3°) to surfaces aligned with the mold opening direction for easy removal without surface damage, increasing for more complex shapes.
Pro Tip: For more complex geometries, consider increasing the draft angle to reduce the risk of defects and mold wear, which can extend die life.
2. Wall Thickness and Material Selection
The ideal wall thickness depends on the material and the part’s functional requirements. Thinner walls allow for faster cooling but can weaken the part if not adequately reinforced.
- Aluminum: 1.016 – 2.032 mm
- Zinc: 0.381 – 0.889 mm
- Magnesium: 1.016 – 2.54 mm
Material Choice Impact:
- Aluminum offers lightweight and excellent thermal conductivity, making it ideal for electronics and automotive components.
- Zinc is best for complex, detailed parts with high precision requirements.
- Magnesium is lightweight and used where weight reduction is critical (e.g., aerospace).
3. Ribs and External Corners
Adding ribs reinforces thin walls and enhances stiffness without drastically increasing weight. External corners should be rounded to minimize stress concentrations and improve the part’s durability. Uniform rib placement ensures even load distribution, reducing the risk of warping or failure.
Design Tip: Avoid using excessive ribbing in non-load-bearing areas, as this can lead to increased material usage and production costs.
4. Windows, Holes, and Complex Features
When designing windows and holes, consider their impact on the part’s strength. Sharp edges should be avoided, and larger draft angles may be necessary, especially if the holes are located on the sides of the mold.
Cost-Saving Tip: Whenever possible, design holes and windows to be cast directly rather than post-machined to reduce lead time and cost. However, some features may require post-machining, particularly in high-precision applications.
5. Post-Machining Features
Post-machining adds precision but increases production time and cost. Features like undercuts, threads, or detailed geometries should be minimized during die cast mold design. Use cores wherever possible to reduce the need for post-processing.
Best Practice: Plan for easy access to these features during machining to reduce tool wear and time.
6. Parting Lines and Flash
Parting lines, where mold halves meet, should be strategically placed in less visible areas. Managing parting line thickness is crucial—thin lines may cause part failure upon ejection, while thick lines lead to uneven surfaces.
Flash Management: Flash often occurs along parting lines, so ensure your design allows for easy removal during post-processing.
7. Surface Finish and Grades
Surface finishing greatly influences the aesthetics and function of the part. The choice of surface grade will depend on the end-use application, ranging from Grade-1 (Utility) to Grade-5 (Superior).
Industry Insight: Grade-5 finishes are typically used for consumer products where appearance is critical, while Grade-1 is sufficient for internal components or industrial parts.
8. Thermal Management in Design
For applications like automotive or electronics, heat dissipation is critical. Optimizing the design with ribs and fins improves thermal management. Aluminum is a preferred material due to its high thermal conductivity, making it ideal for parts like heat sinks and enclosures.
9. Sustainability in Die Casting Design
Consider the environmental impact by designing with recyclable materials and minimizing material waste. Using simulation tools such as CFD (Computational Fluid Dynamics) or FEA (Finite Element Analysis) can help optimize the design for efficiency before production, saving both resources and costs.
Castingflow Simulation Software
MAGMA Software for Mold Flow Analysis: Simulation tools in die design like MAGMA provide valuable insights into the die casting process. They help analyze mold flow, cooling system efficiency, gate and runner design, tonnage requirements, and production parameters such as time and pressure.
Analysis of Cooling System, Gate and Runner Area, Tonnage, Time, and Pressure: Using simulation software, designers can optimize these factors to enhance the quality and efficiency of the casting process.
Die Casting Die Material:
Die Core Material Options:
- H13 Steel: Highly valued for its thermal conductivity and resistance to thermal fatigue, making it perfect for high-temperature die cores.
- SKD61 Steel: Offers excellent toughness and high-temperature performance. It’s suitable for aluminum, zinc, and copper alloy molds and ejector pins and barrels.
- 8418 Steel: Renowned for its resistance to thermal fatigue, shock, wear, and deformation. Ideal for moulds used with zinc, magnesium, aluminium, and titanium alloys.
Die Base Material Options: Materials such as QT600, S50C and QT550 are often used for die bases due to their durability and ability to withstand high-pressure conditions.
Die Casting Tooling Life:
Factors Affecting Tooling Life: Tooling life depends on several factors, including die material, design complexity, production volume, and maintenance practices.
Typical Tooling Life for Domestic and Export Scenarios: Tooling life can vary significantly based on production demands. Domestic tooling often has a shorter lifespan due to higher production volumes, while export tooling may have extended life due to lower production rates.
Mastering the fundamentals of die casting die design is essential for achieving high-quality, cost-effective production. By considering factors such as casting method, tonnage calculation, shrinkage analysis, and simulation software utilization, designers can create dies that meet the demands of modern manufacturing. With meticulous attention to detail and a comprehensive understanding of the die casting process, designers can unlock the full potential of die casting as a manufacturing solution.
